    SD20M60AC
    600V/20A 3-PHASE FULL-BRIDGE DRIVER (INTELLIGENT POWER MODULE)

        SD20M60AC is a 3-phase brushless DC motor driver with high integration and high reliability for low power inverter driving such as air condition, dishwasher, and industrial sewing machine. It has embedded six low-loss IGBT and three high-speed half-bridge gate drivers with high voltage.

       The under voltage, short circuit and over temperature protections integrated make the circuit work safely in a wide range. The current of each phase can be detected separately because there is one independent negative DC terminal for each phase.

       SD20M60AC uses high-insulation design, compact package and carries heat easily, which makes it easy to use especially for compact installation applications.

    Main feature

    • Built-in six low-loss 600V/20A IGBT;

    • Built-in high-voltage gate driver;

    • Built-in under voltage, over temperature and over current protections;

    • Built-in bootstrap diode;

    • Compatible with 3.3V, 5V  MCU interface, active high;

    • Three independent negative DC terminal for inverter current detection;

    • Alarm signal: for low-side under voltage and short circuit protections;

    • Package in DBC design with low thermal resistance;

    • Insulation level: 2500Vrms/min

    Ordering Information
    Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
    SD20M60AC DIP-27H SD20M60AC Halogen free Tube

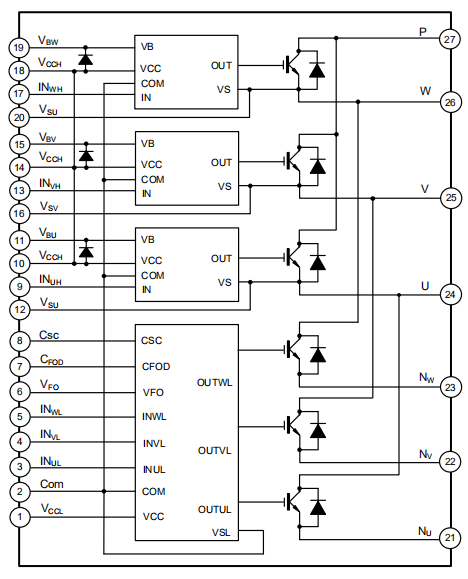

    Block Diagram


    Documents
    title Types of Size (KB) date Download the latest English version
    SD20M60AC Datasheet 0 1970-01-01 SD20M60AC Datasheet
