      SLP74LVC3G07
      TRIPLE BUFFER WITH OPEN-DRAIN OUTPUT

      The SLP74LVC3G07 is triple buffer with open-drain output.

      The output of the device is open drain. This device is fully specified for partial power-down applications using IOFF. The IOFF circuitry disables the output, preventing the damaging backflow current through the device when it is powered down.


      Main feature

      • 5V tolerant input/output for interfacing with 5V logic

      • Balanced propagation delays

      • Wide supply voltage range from 1.65V to 5.5V

      • 24mA output drive (VCC=3.0V)

      • ESD protection:

      • HBM: 2000V

      • CDM: 1000V

      • Latch-up performance: 100mA

      • Specified from -40°C to +85°C and from -40°C to +125°C


      Ordering Information
      Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
      SLP74LVC3G07JWTR VSSOP-8-100-0.5 3G07 Halogen free Tape & Reel

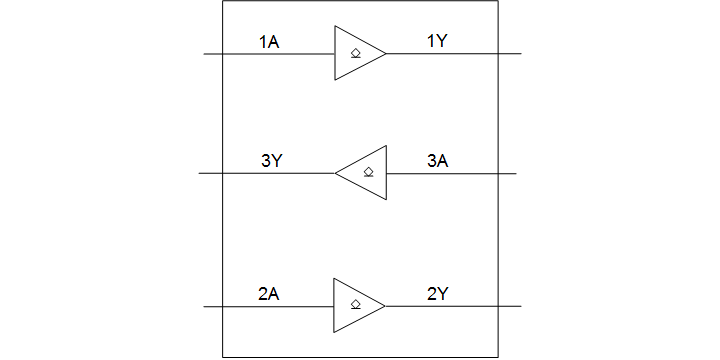

      Block Diagram

      SLP74LVC3G07 （720&360）.png

      Documents
      title Types of Size (KB) date Download the latest English version
      SLP74LVC3G07 0 1970-01-01 SLP74LVC3G07 Brief Datasheet
