SD59D24B
USB POWER DELIVERY (PD) CONTROLLER FOR MOBILE POWER SUPPLY

    The SD59D24B is a highly integrated protocol and power control IC for mobile power supply. It integrates 4-channel USB ports (up to AACC) and is compatible with fast charging protocols such as PD3.0, PPS, QC4.0 +, FCP, SCP, SFCP, AFC, BC1.2, APPLE, VOOC. Two boost/buck control circuits are integrated to realize CCCV control of two independent power supplies. Built-in high-precision ADC realizes charge and discharge management of lithium battery.

SD59D24B integrates abundant functions, providing complete solution for fast charging mobile power supply. The periphery of the system is simple, which greatly reduces BOM cost.


Main feature

  • Operating voltage range: 3.3V~40V

  • Protocol support PD3.0, PPS, QC4.0+, FCP, SCP, SFCP, AFC, BC1.2, APPLE, VOOC

  • Support protocol parsing of 2 pairs of CC ports and 4 pairs of DD ports

  • 8-channel PWM Drive Control with Controllable Dead Zone, Support 100~500kHz PWM switching frequency settable

  • Two-way current sampling and three-way voltage sampling

  • 4-way load switch control

  • I2C/UART communication

  • LED indication and digital tube display

  • Mobile phone access detection and removal detection

  • Support STOP low power dissipation mode

  • Built-in over voltage protection, over current protection and over temperature protection


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks

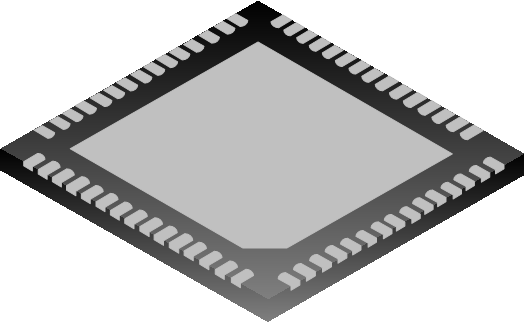

SD59D24B QFN-60-7X7X0.75-0.4 SD59D24B Halogen free Tray
SD59D24BTR QFN-60-7X7X0.75-0.4 SD59D24B Halogen free Tape&Reel
Documents
title Types of Size (KB) date Download the latest English version
SD59D24B 0 1970-01-01 SD59D24B Brief Datasheet
