    SDM10C60TA5B1
    600V/10A 3-PHASE FULL-BRIDGE DRIVER (INTELLIGENT POWER MODULE)

        SDM10C60TA5B1 is a 3-phase brushless DC motor driver with high integration and high reliability for low power inverter driving such as fan, pump and refrigerator. It has embedded six low-loss IGBTs and 3-phase half-bridge gate drivers with high voltage.

        The under voltage, short circuit protections and temperature output integrated make the circuit work safely in a wide range. The current of each phase can be detected separately because there is one independent negative DC terminal for each phase.

        SDM10C60TA5B1 uses high-insulation design, compact package and carries heat easily, which makes it easy to use especially for compact installation applications.


    Main feature

    • Built-in low-loss 600V/10A IGBTs

    • Built-in high-voltage integrated circuit of gate driver

    • Built-in under voltage protections, over current protection and temperature output

    • Built-in shut-down input

    • Built-in inter-lock function

    • Built-in bootstrap diode with current limiting resistor

    • Compatible with 3.3V, 5V MCU interface, active high

    • Three independent negative DC terminals for inverter current detection

    • Isolation rating: 1500Vrms/min


    Ordering Information
    Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
    SDM10C60TA5B1 DIP-25E SDM10C60TA5B1 Halogen free Tube
    Block Diagram


    Documents
    title Types of Size (KB) date Download the latest English version
    SDM10C60TA5B1 0 1970-01-01 SDM10C60TA5B1 Brief Datasheet

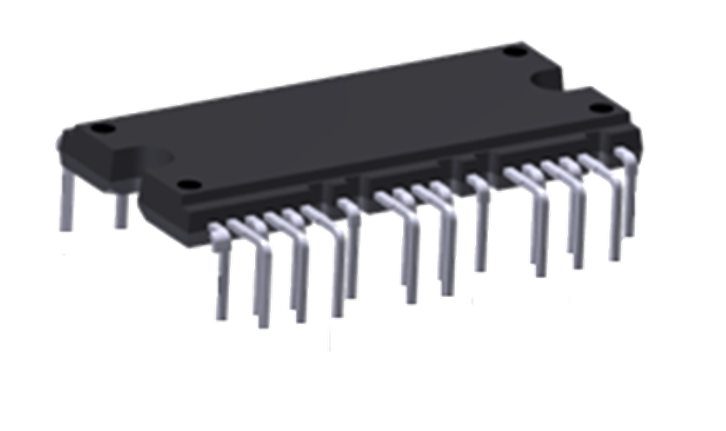

    Packages
