SLP74HCT14
HEX SCHMITT-TRIGGER INVERTERS

The SLP74HCT14 is a high-speed Si-gate CMOS device.

The SLP74HCT14 contains six independent inverters. Each circuit functions as an independent inverter. Because of the Schmitt-Trigger action, the inverters are capable of transforming slowly changing input signals into sharply defined, jitter-free output signals.


Main feature

  • All inputs have Schmitt-trigger actions

  • TTL level input

  • ESD protection:

  • HBM: 2000V

  • CDM: 1000V

  • Latch-up performance: 100mA

  • Specified from -40°C to +85°C and from -40°C to +125°C


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SLP74HCT14JY TSSOP-14-225-0.65 74HCT14 Halogen free Tube
SLP74HCT14JYTR TSSOP-14-225-0.65 74HCT14 Halogen free Tape & Reel
SLP74HCT14SB SOP-14-225-1.27 74HCT14 Halogen free Tube
SLP74HCT14SBTR SOP-14-225-1.27 74HCT14 Halogen free Tape & Reel

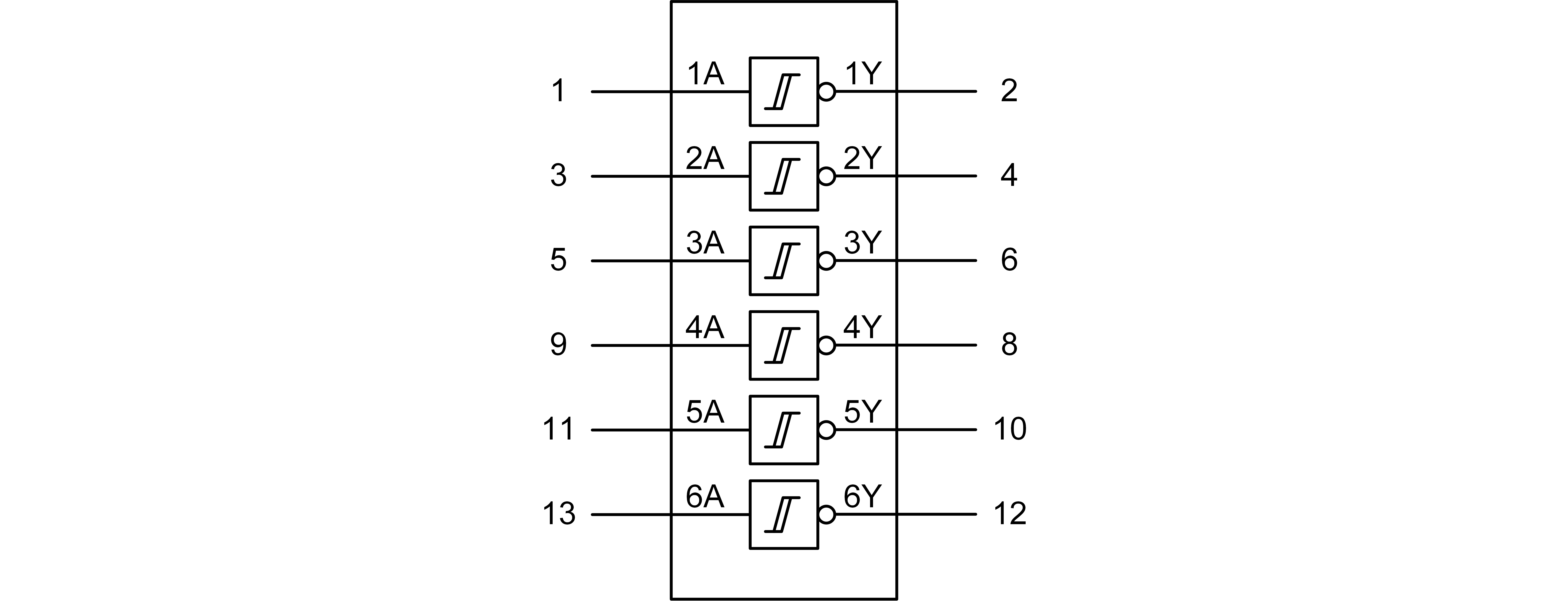

Block Diagram

SLP74HCT14 （9000&3450）.png

Documents
title Types of Size (KB) date Download the latest English version
SLP74HCT14 0 1970-01-01 SLP74HCT14 Brief Datasheet
