    SDH752XS
    POWER FACTOR CORRECTION (CRITICAL CONDUCTION MODE) CONTROLLER

    The SDH752XS is a high performance, critical conduction mode power factor correction (PFC) controller with 500V MOSFET.

    SDH752XS adopts high voltage power supply, and omits auxiliary winding by adopting MOS gate zero crossing detection technology.

    It uses patented COMP-saving capacitor technology to achieve excellent power factor correction and constant voltage output with only a few peripheral components, which greatly reduces the system cost.

    It provides various protections, such as output over voltage protection, CS cycle-by-cycle current limit and over temperature protection etc.


    Main feature

    Single winding inductor booster system with reduced periphery

    High voltage start-up and power supply

    Built-in 500V high-voltage MOSFET

    Gate Zero-crossing detection and critical conduction mode

    Fixed on time control

    Patented closed-loop control technology, without peripheral compensation network, anti-moisture and anti-leakage

    VCC under-voltage lockout

    Output overvoltage protection

    CS cycle-by-cycle current limit

    Over temperature protection


    Ordering Information
    Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
    SDH7522S SOP-8-225-1.27 SDH7522S Halogen free Tube
    SDH7522STR SOP-8-225-1.27 SDH7522S Halogen free Tape & Reel
    SDH7523S SOP-8-225-1.27 SDH7523S Halogen free Tube
    SDH7523STR SOP-8-225-1.27 SDH7523S Halogen free Tape & Reel
    SDH7524S SOP-8-225-1.27 SDH7524S Halogen free Tube
    SDH7524STR SOP-8-225-1.27 SDH7524S Halogen free Tape & Reel
    SDH7523CS SOP-8-225-1.27 7523CS Halogen free Tube
    SDH7523CSTR SOP-8-225-1.27 7523CS Halogen free Tape & Reel
    SDH7524BS SOP-8-225-1.27 7524BS Halogen free Tube
    SDH7524BSTR SOP-8-225-1.27 7524BS Halogen free Tape & Reel

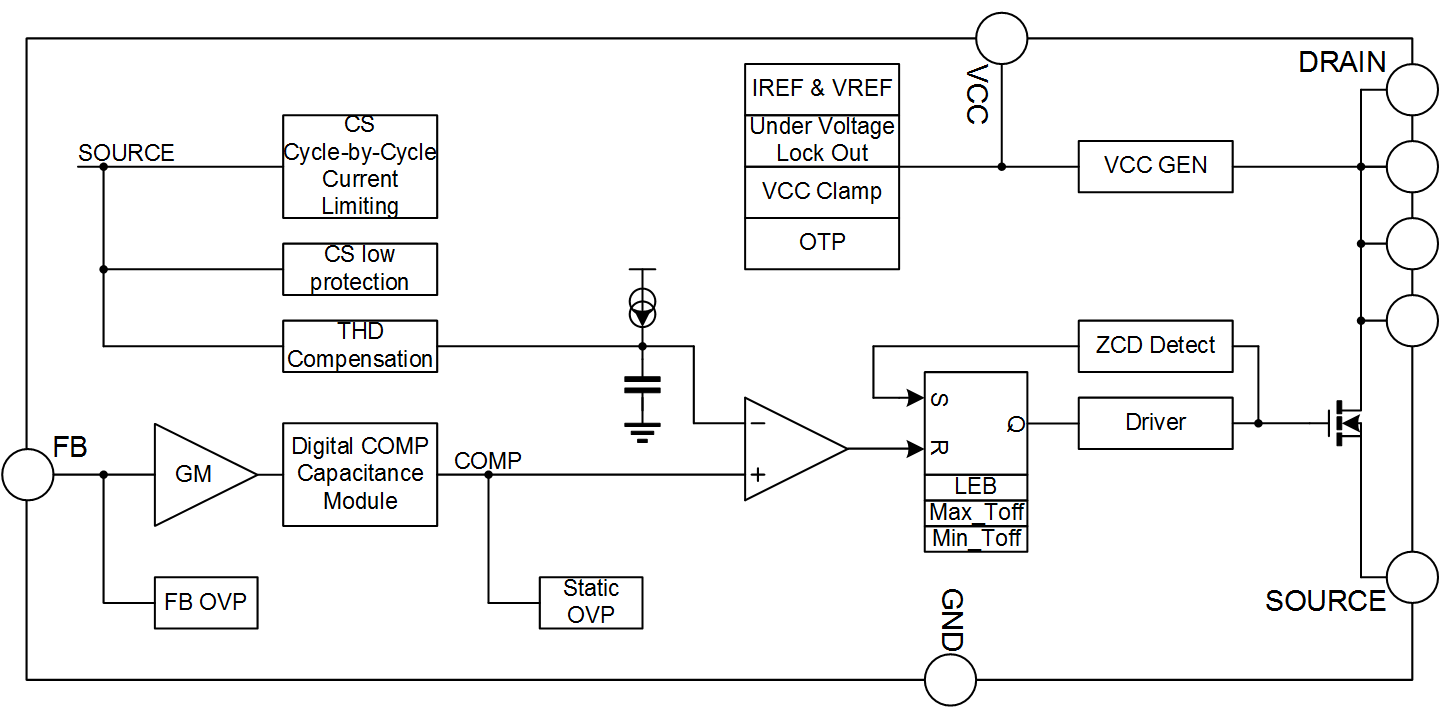

    Block Diagram

    SDH752XS 中英文同.png

    Documents
    title Types of Size (KB) date Download the latest English version
    SDH752XS 0 1970-01-01 SDH752XS Brief Datasheet
