      SAP431E
      PRECISION ADJUSTABLE SHUNT REGULATOR

      SAP431E is an adjustable three-terminal shunt regulator with excellent thermal stability over operating temperature range. The output voltage can be set to any value between Vref (approximately 2.5V) and 36V through external resistors. It provides a very sensitive turn-on characteristic, which makes it possible to replace Zener diodes in many applications.


      Main feature

      Adjustable output voltage: up to 36V

      Low dynamic output impedance: 0.3W

      Sink current capability: 0.3~100mA

      Equivalent full-scale temperature coefficient: typ. 50ppm/°C

      Temperature compensation in the rated operating temperature range

      Low output noise

      Fast start-up response


      Ordering Information
      Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
      SAP431EKATR SOT-23-3L 431E Halogen free Tape & Reel
      SAP431EKFTR SOT-23 431E Halogen free Tape & Reel

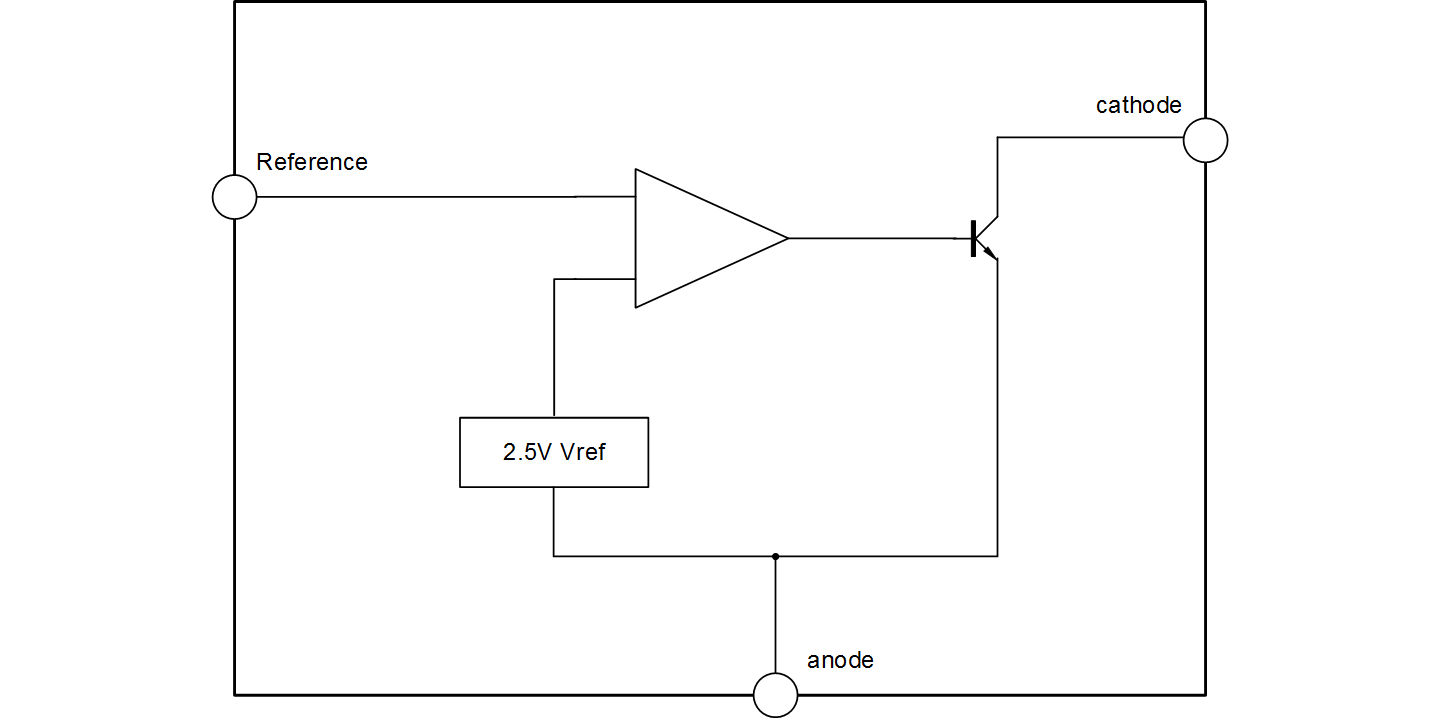

      Block Diagram


      Documents
      title Types of Size (KB) date Download the latest English version
      SAP431E 0 1970-01-01 SAP431E Brief Datasheet
