      SLP74GTL2014
      4-CHANNEl LVTTL TO GTL TRANSCEIVER

          The SLP74GTL2014 is a 4-channel transceiver designed for interface  of LVTTL and GTL-/GTL/GTL+. The transceiver is designed for 3V to 3.6V VCC operation. The LVTTL inputs are tolerant up to 5.5V,  allowing direct access to TTL or CMOS inputs. The device operates as a GTL to LVTTL or LVTTL to GTL translator due to the direction control pin DIR. The reference voltage VREF is adjustable from 0.5V to VCC/2.

         The device is specially designed for protect performance during power down using Power-Down-Protect circuit. The Power-Down-Protect circuit disables the output drivers, preventing the damaging outside current back through the device when it is powered down.


      Main feature

      • The LVTTL inputs tolerant to 5.5V

      • Direct Access to TTL or 5V CMOS

      • Operates as a GTL to LVTTL or LVTTL to GTL translator

      • Adjustable VREF from 0.5V to VCC/2

      • Partial Power-Down Permitted

      • ESD protection:

      • HBM exceeds 2000V

      • CDM exceeds 1000V

      • Latch-up performance exceeds 500mA

      • Specified from -40°C to +85°C


      Ordering Information
      Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
      SLP74GTL2014JYTR TSSOP-14-225-0.65 GL2014 Halogen free Tape & Reel

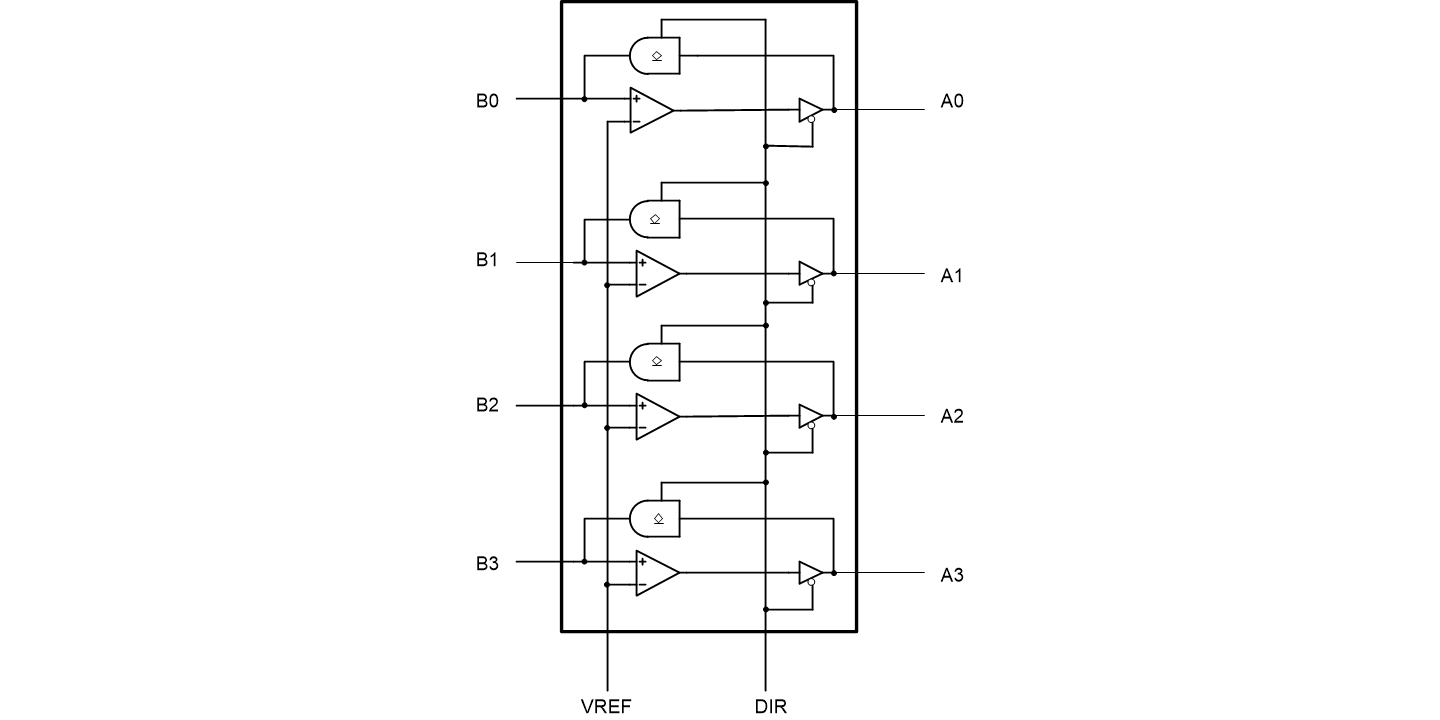

      Block Diagram

      SLP74GTL2014 （1440-720）.png

      Documents
      title Types of Size (KB) date Download the latest English version
      SLP74GTL2014 0 1970-01-01 SLP74GTL2014 Brief Datasheet
