SLP74LVC04A
HEX INVERTER

    The SLP74LVC04A provides six inverting buffers.

    The SLP74LVC04A is designed for 1.2V to 3.6V VCC operation and perform the Boolean function Y=A(——). Inputs can be driven from either 3.3V or 5V devices. This feature allows the use of these devices as translators in mixed 3.3V and 5V system environment.


Main feature

  • Inputs accept voltages up to 5.5V

  • Operate from 1.2V to 3.6V

  • Direct interface with TTL levels

  • CMOS low power consumption

  • ESD protection:

  • HBM exceeds 2000V

  • CDM exceeds 1000V

  • Latch-up performance exceeds 250mA

  • Specified from -40°C to +85°C and from -40°C to +125°C


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SLP74LVC04AEB SOP-14-225-1.27 74LVC04A Halogen free Tube
SLP74LVC04AEBTR SOP-14-225-1.27 74LVC04A Halogen free Tape & Reel

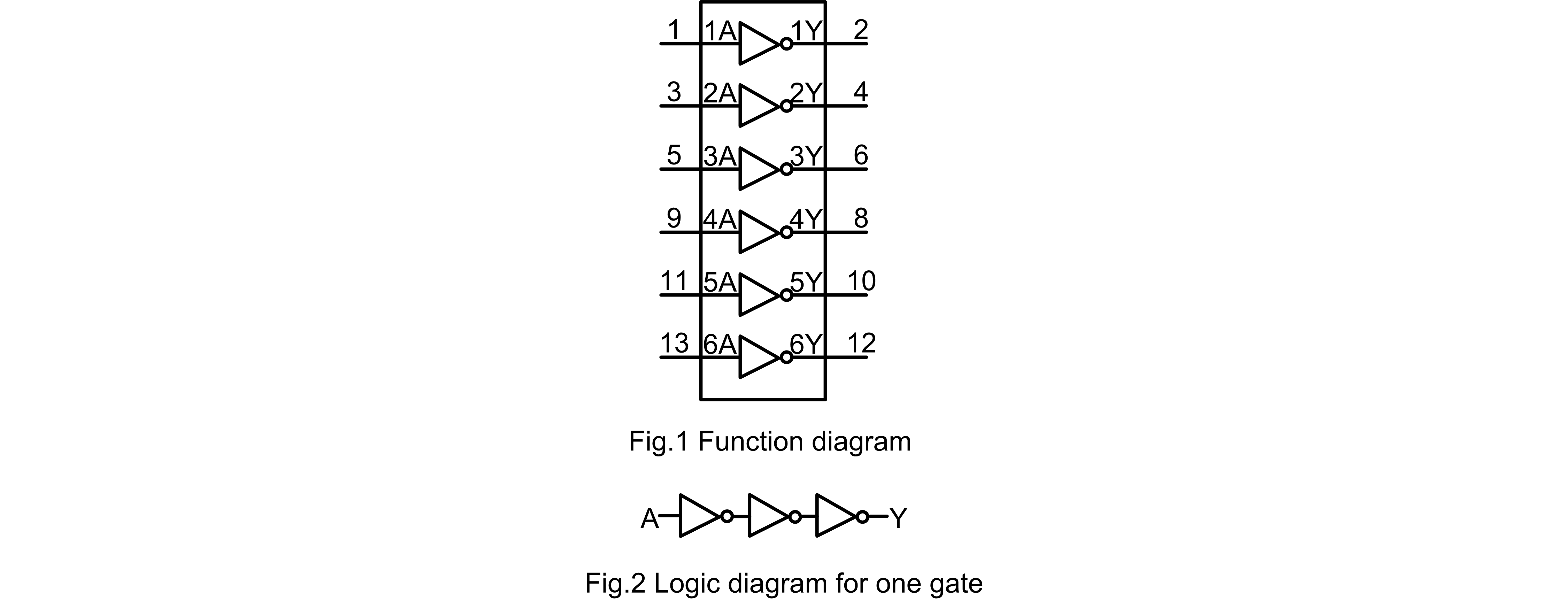

Block Diagram

SLP74LVC04A 英文.png

Documents
title Types of Size (KB) date Download the latest English version
SLP74LVC04A 0 1970-01-01 SLP74LVC04A Brief Datasheet
