    SLP74LVC126A
    QUAD BUFFER/LINE DRIVER WITH 3-STATE OUTPUTS

         The SLP74LVC126A consists of four non-inverting buffers/line drivers with 3-state outputs. Each output is disabled.
    when the associated output-enable (OE) input is low    . A LOW at nOE causes the outputs to assume a high-impedance OFF-state.

         Inputs can be driven from either 3.3V or 5V devices. When disabled, up to 5.5V can be applied to the outputs.


    Main feature

    • Inputs accept Voltages to 5V

    • Operate from 1.2V to 3.6V

    • CMOS low power consumption

    • Direct interface with TTL levels

    • ESD protection:

    • HBM exceeds 2000V

    • CDM exceeds 1000V

    • Latch-up performance exceeds 250mA

    • Specified from -40°C to +85°C and from -40°C to +125°C


    Ordering Information
    Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
    SLP74LVC126AJY TSSOP-14-225-0.65 LVC126A Halogen free Tube
    SLP74LVC126AJYTR TSSOP-14-225-0.65 LVC126A Halogen free Tape & Reel

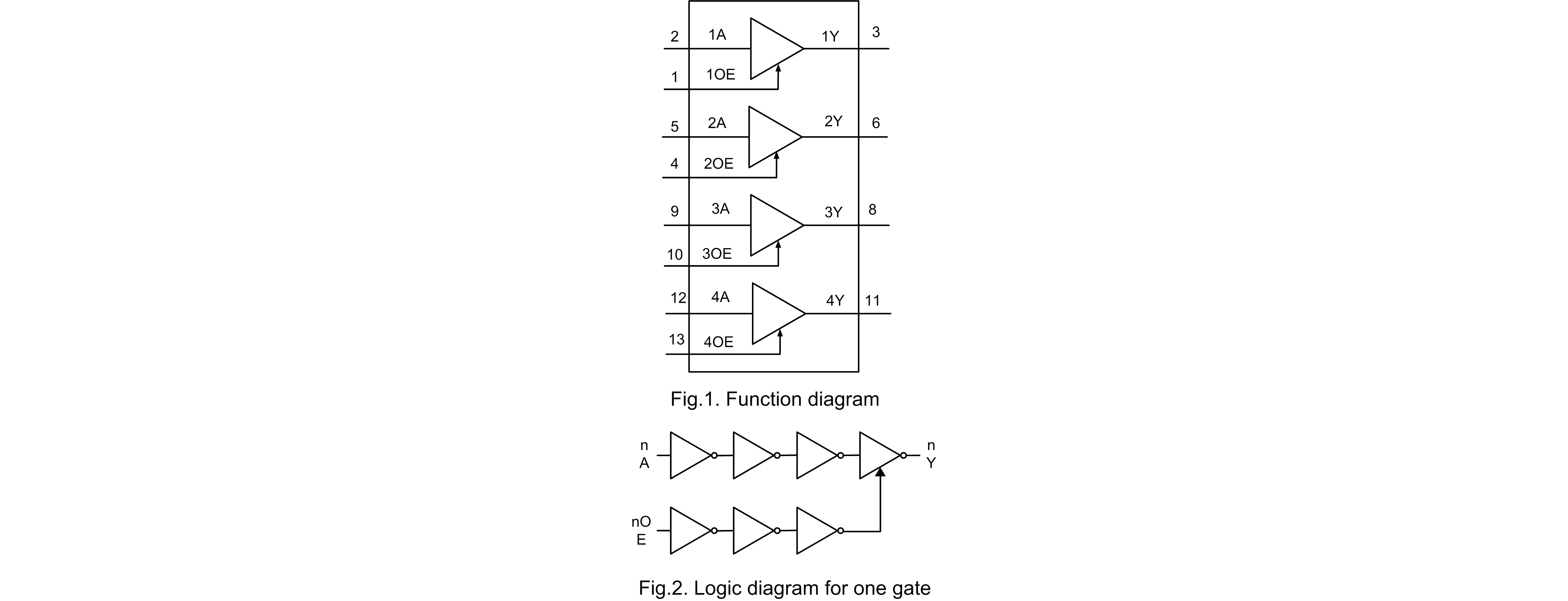

    Block Diagram


    Documents
    title Types of Size (KB) date Download the latest English version
    SLP74LVC126A 0 1970-01-01 SLP74LVC126A Brief Datasheet
