SLP74LVC08A
QUAD 2-INPUT AND GATE

    The SLP74LVC08A provides four 2-input AND gates, and is designed for 1.2V to 3.6V VCC operation.

    Inputs can be driven from either 3.3V or 5V devices. This feature allows the use of these devices as translators in mixed 3.3V and 5V applications.

    The SLP74LVC08A perform the Boolean function in positive logic.


Main feature

  • 5V tolerant inputs for interlacing with 5V logic

  • Wide supply voltage range from 1.2V to 3.6V

  • CMOS low power consumption

  • Direct interface with TTL levels

  • ESD protection:

  • HBM exceeds 2000V

  • CDM exceeds 1000V

  • Latch-up performance exceeds 250 mA

  • Specified from -40°C to +85°C and from -40°C to +125°C


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks

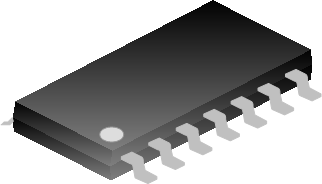

SLP74LVC08AEB SOP-14-225-1.27 LVC08A Halogen free Tube
SLP74LVC08AEBTR SOP-14-225-1.27 LVC08A Halogen free Tape&Reel

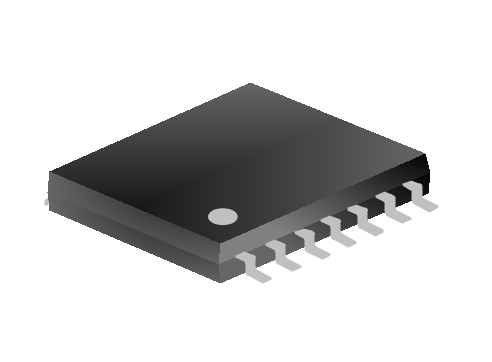

SLP74LVC08AJY TSSOP-14-225-0.65 LVC08A Halogen free Tube
SLP74LVC08AJYTR TSSOP-14-225-0.65 LVC08A Halogen free Tape & Reel

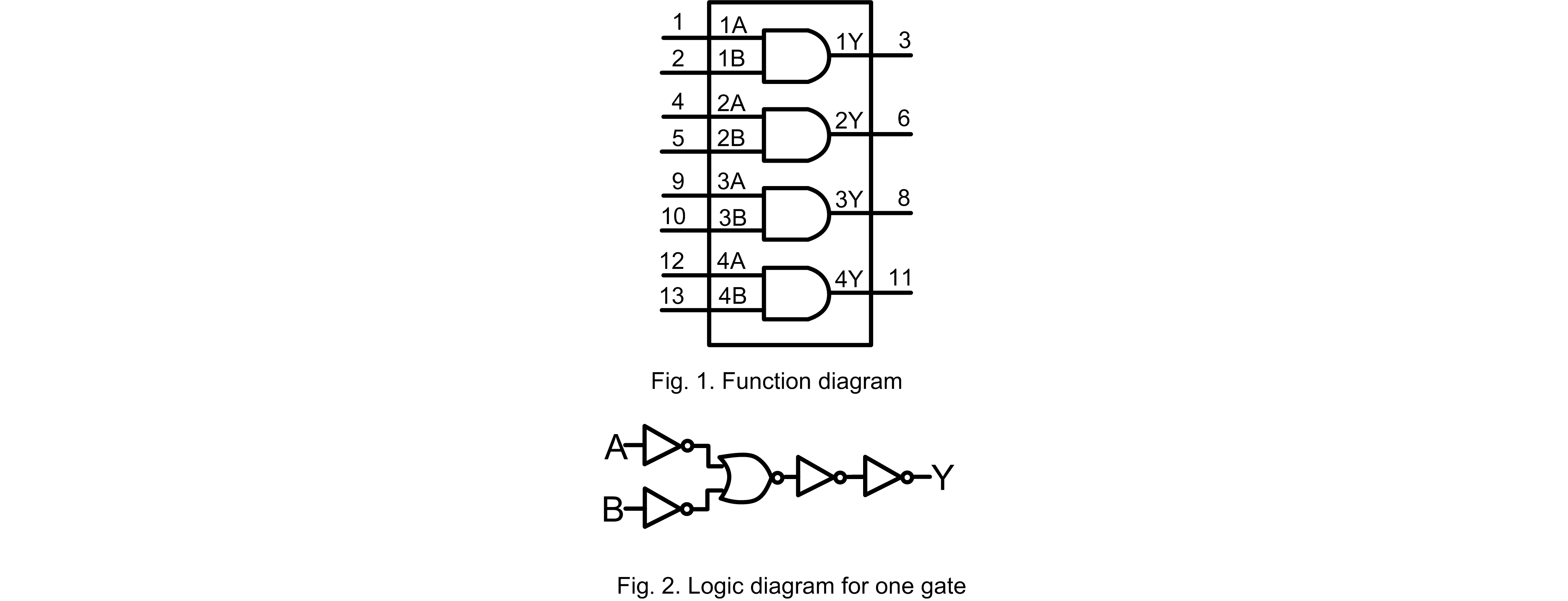

Block Diagram


Documents
title Types of Size (KB) date Download the latest English version
SLP74LVC08A 0 1970-01-01 SLP74LVC08A Brief Datasheet
