      SAP432
      PRECISION ADJUSTABLE SHUNT REGULATOR

      SAP432 is an adjustable three-terminal shunt regulator with excellent thermal stability over operating temperature range. The output voltage can be set to any value between Vref (approximately 2.5V) and 36V through external resistors. It provides a very sensitive turn-on characteristic, which makes it possible to replace Zener diodes in many applications.

      Main feature

      • Adjustable output voltage: up to 36V

      • Low dynamic output impedance: 0.3W

      • Sink current capability: 1.0~100mA

      • Equivalent full-scale temperature coefficient: typ. 50ppm/°C

      • Temperature compensation in the rated operating temperature range

      • Low output noise

      • Fast start-up response


      Ordering Information
      Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
      SAP432AKATR SOT-23-3L 432A Halogen free Tape&Reel
      SAP432AKFTR SOT-23 432A Halogen free Tape & Reel

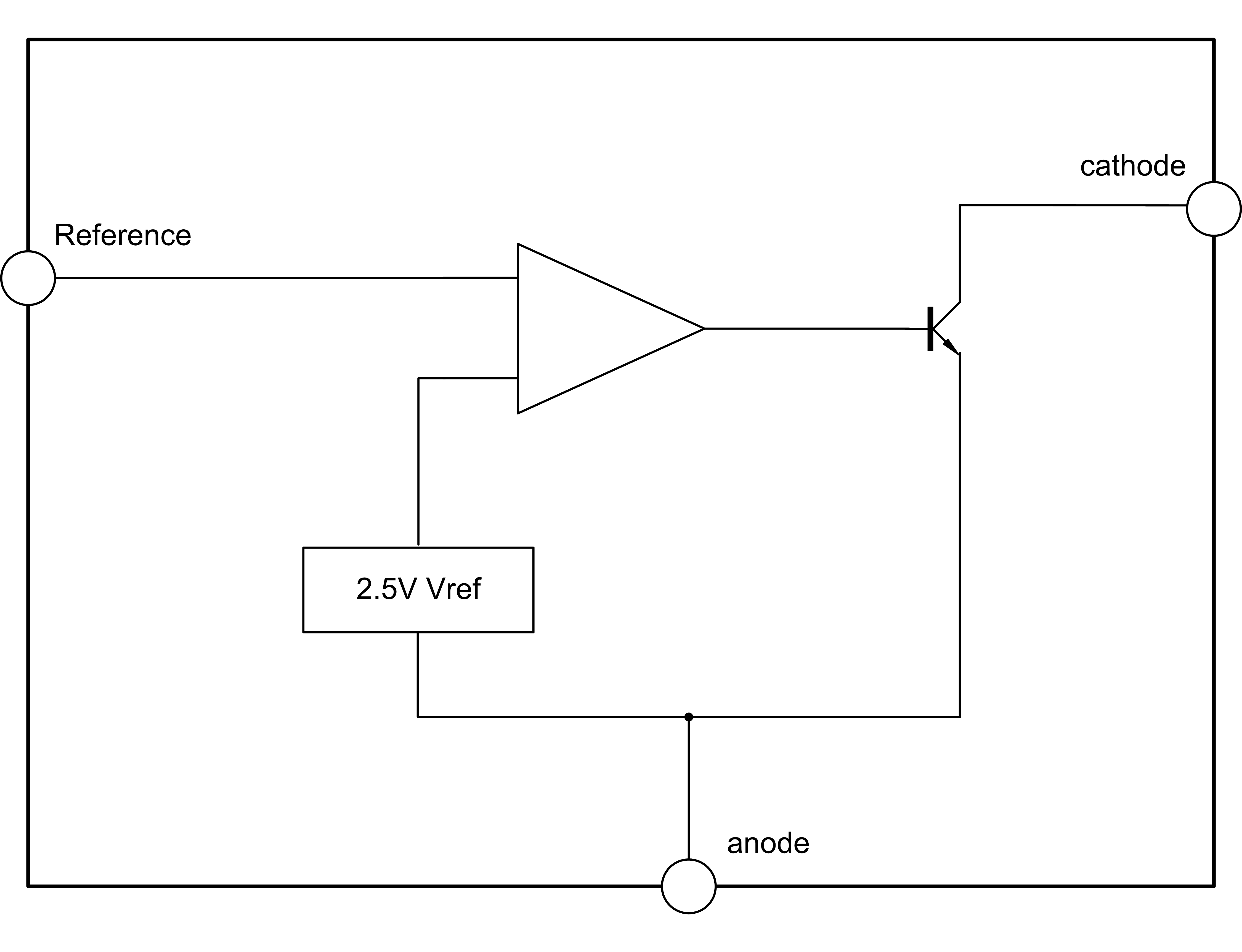

      Block Diagram


      Documents
      title Types of Size (KB) date Download the latest English version
      SAP432 0 1970-01-01 SAP432 Brief Datasheet
