SDM02M60DAE/DAS
INTELLIGENT POWER MODULE(IPM), 3 PHASE FULL-BRIDGE 600V/2A

    SDM02M60DAE/DAS is a 3-phase brushless DC motor driver IC with highly-integrated and high reliability, using for small power motor drive applications such as fan motor, consisting of built-in 6 fast recovery MOSFET and 3 half-bridge HVIC for gate driving.

    SDM02M60DAE/DAS integrates under-voltage protection circuit, providing perfect protection and fail-safe operation. Each phase current of inverter can be monitored separately due to divided negative dc terminals.

    SDM02M60DAE/DAS is designed with good insulation, perfect thermal properties and low EMI. It is compact and suitable for built-in motors or any other applications requiring the compact installation.


Main feature

  • Built-in 600V/2A fast recovery MOSFET

  • Built-in high-voltage Gate driver circuit (HVIC)

  • Built-in under-voltage protection

  • Built-in bootstrap diode

  • Built-in Negative Temperature Coefficient (NTC) resistor for temperature sensing

  • Compliant with 3.3V and 5V MCU interface, active high

  • 3 independent negative DC-link terminals for inverter current sensing

  • Optimal adapted for low EMI

  • Insulation class: 1500Vrms/min


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SDM02M60DAE DIP-23E SDM02M60DAE Pb free Tube
SDM02M60DAS SOP-23H SDM02M60DAS Pb free Tube
SDM02M60DASTR SOP-23H SDM02M60DAS Pb free Tape&Reel

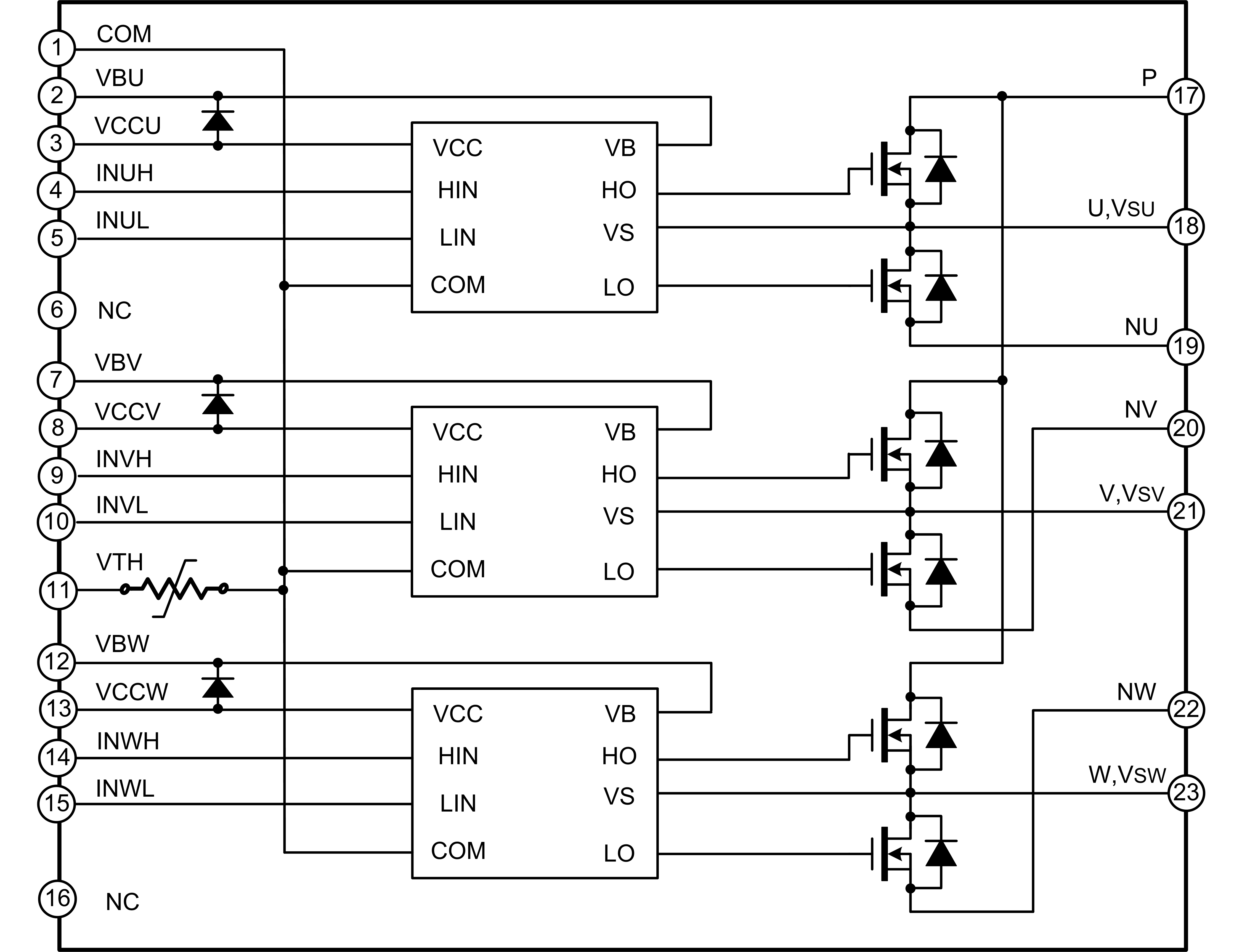

Block Diagram
