    SAP2844E
    CURRENT MODE PWM CONTROLLER

    The SAP2844E provides the necessary features to implement off-line or DC to DC fixed frequency current mode control schemes with a minimal external parts count. Internally implemented circuits include under-voltage lockout featuring start up current less than 0.5mA, a precision reference trimmed for accuracy at the error amp input, logic   to insure latched operation, a PWM comparator which also provides current limit control and a totem pole output stage designed to source or sink high peak current. The output stage, suitable for driving N channel MOSFETs, is low in the off state.

    Main feature

    • Optimized for off-line and DC to DC converts

    • Low start up current (<0.5mA)

    • Automatic feed forward compensation

    • Pulse-by-Pulse current limiting

    • Enhanced load response characteristics

    • Under-voltage lockout with hysteresis

    • Double pulse Suppression

    • High current totem pole output

    • Internally trimmed bandgap reference

    • 500kHz operation


    Ordering Information
    Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
    SAP2844ESA SOP-8-225-1.27 2844ESA Halogen free Tube
    SAP2844ESATR SOP-8-225-1.27 2844ESA Halogen free Tape&Reel
    SAP2844EJA ESOP-8-225-1.27 2844EJA Halogen free Tube
    SAP2844EJATR ESOP-8-225-1.27 2844EJA Halogen free Tape&Reel

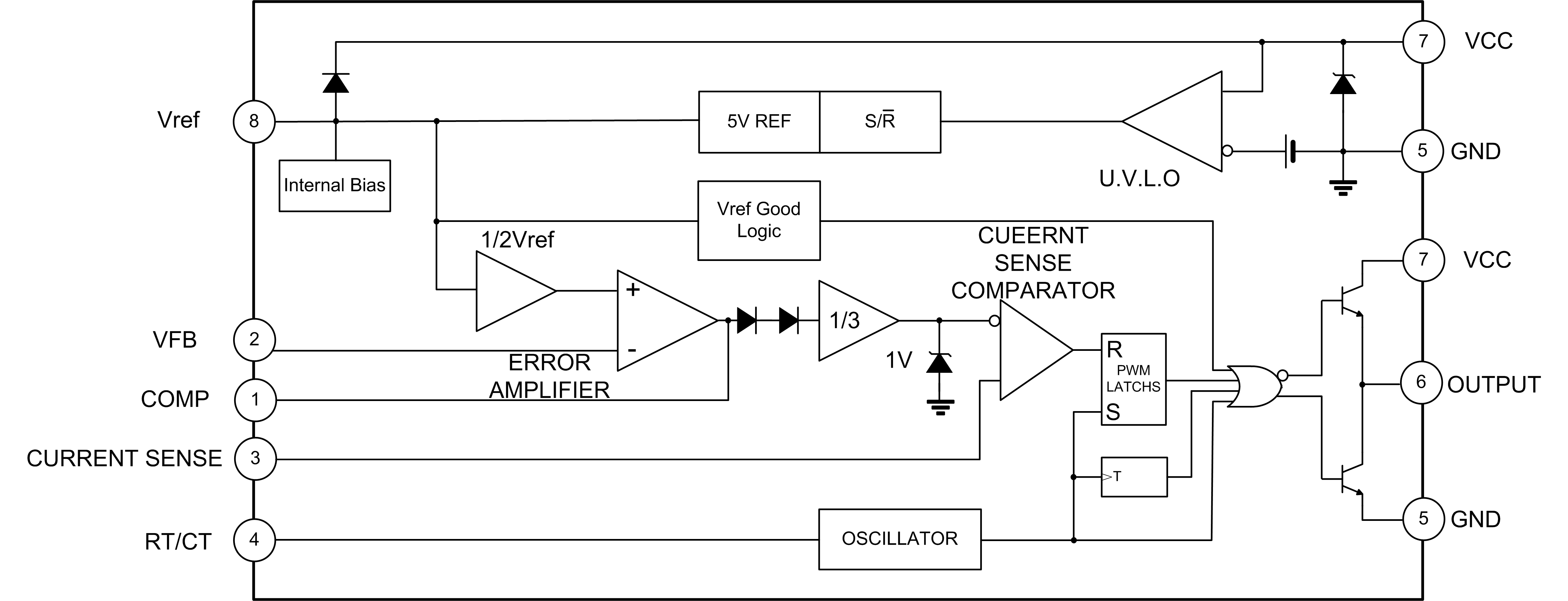

    Block Diagram

    SAP2844E 英文.png

    Documents
    title Types of Size (KB) date Download the latest English version
    SAP2844E 0 1970-01-01 SAP2844E Brief Datasheet
