    SLP74XB0304
    4-BIT BIDIRECTIONAL LEVEL-SHIFTER WITH AUTOMATIC DIRECTION SENSING

         The SLP74XB0304 is a 4-bit, dual supply translating transceiver with auto direction sensing, that enables bidirectional voltage level translation. This 4-bit non-inverting translator uses two separate configurable power-supply rails. The A port is designed to track VCCA. VCC(A) can be supplied at any voltage between 0.9 V and 3.6 V. The B port is designed to track VCCB. VCC(B) can be supplied at any voltage between 0.9 V and 3.6 V. This allows for low Voltage bidirectional translation between 1 V, 1.2 V, 1.5 V, 1.8 V, 2.5 V and 3.3 V voltage nodes. For the SLP74XB0304, when the output-enable (OE) input is low, all outputs are placed in the high-impedance state. Pins An and OE are referenced to VCC(A) and pins Bn are referenced to VCC(B). This device is fully specified for partial-power-down applications using IOFF. The IOFF circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

    Main feature

    • Fully Symmetric Supply Voltages:

    • VCC(A): 0.9 V to 3.6 V and VCC(B): 0.9 V to 3.6 V

    • VCC Isolation Feature – If either VCC Input is at GND, all outputs are in high-impedance state.

    • OE input circuit referenced to VCCA

    • IOFF circuitry provides partial Power-down mode operation

    • ESD protection:

    • HBM exceeds 8 KV

    • CDM exceeds 1 KV

    • Latch-up performance exceeds 100 mA

    • Specified from -40 °C to +85 °C


    Ordering Information
    Product Name Package form Marking Hazardous Substance Control Packing Type Remarks

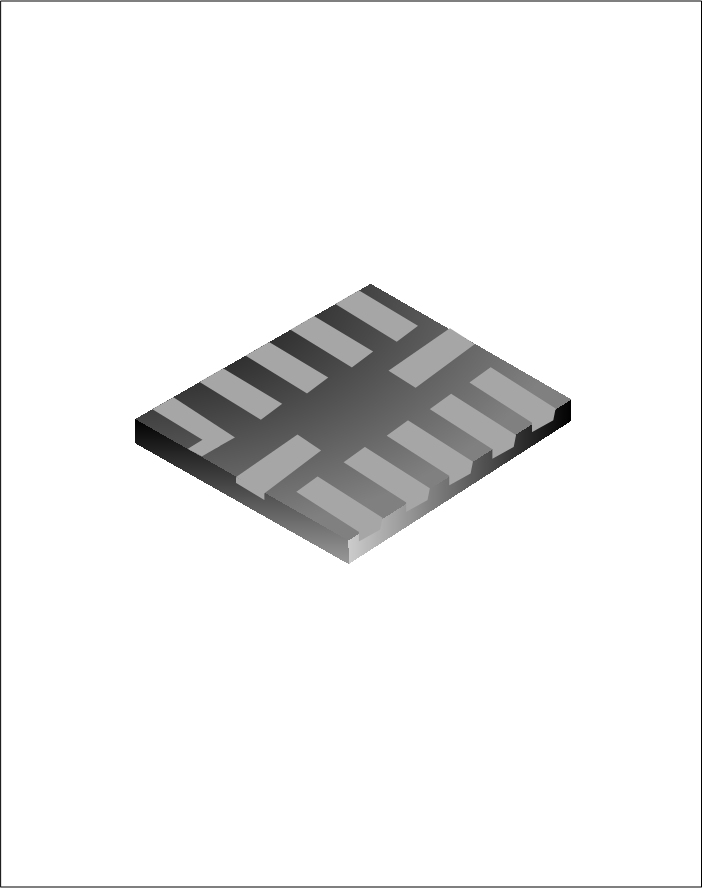

    SLP74XB0304NATR QFN-12-1.7x2x0.5-0.4 0304 Halogen free Tape&Reel

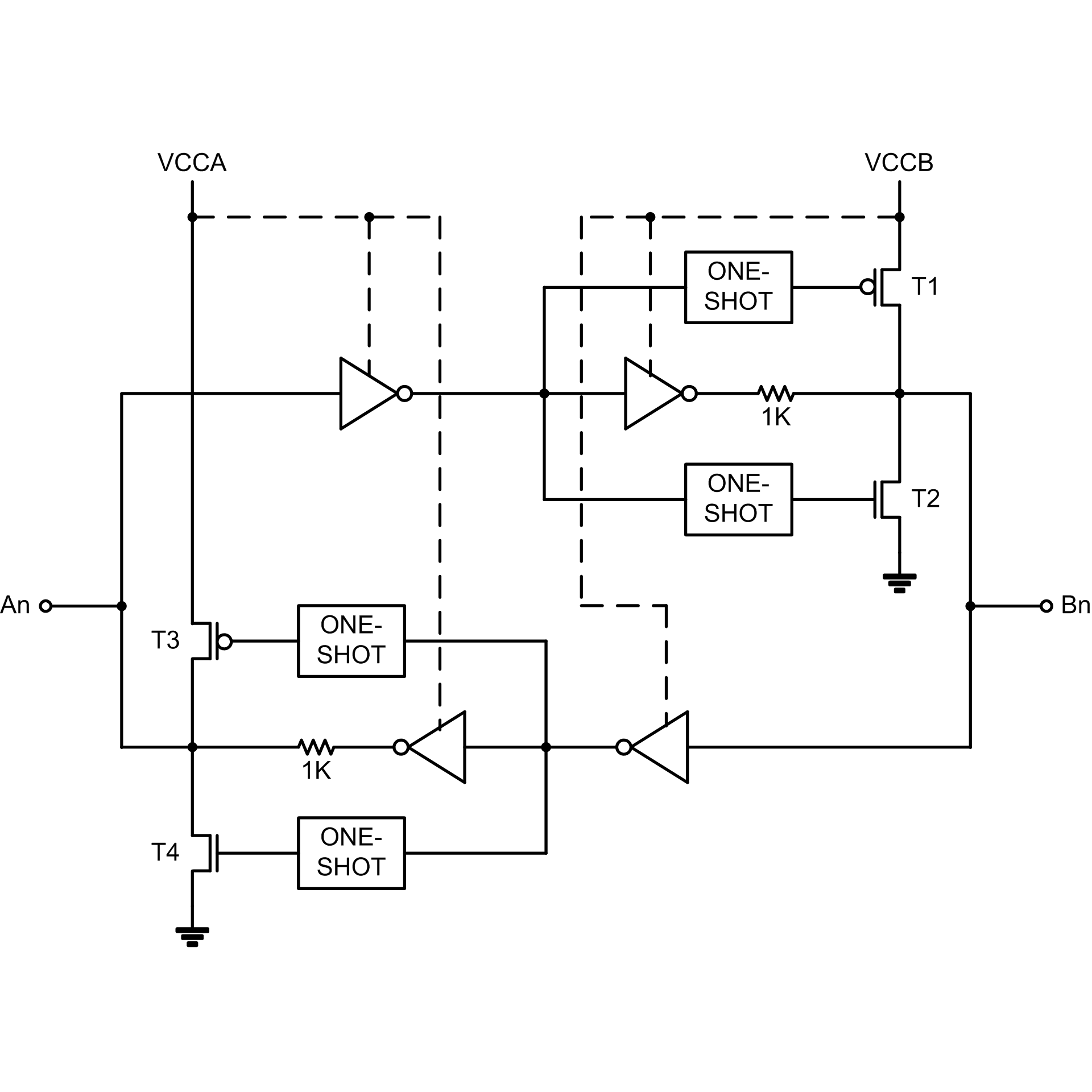

    Block Diagram


    Documents
    title Types of Size (KB) date Download the latest English version
    SLP74XB0304 0 1970-01-01 SLP74XB0304 Brief Datasheet
