SLP74LVC1G00
SINGLE 2-INPUT NAND GATE

     The SLP74LVC1G00 is designed for 1.65-V to 5.5V VCC operation and provides the single 2-input NAND function which performs the Boolean function 捕获.PNGor 捕获1.PNG.

     This device is fully specified for partial power-down applications using IOFF. The IOFF circuitry disables the output, preventing the damaging backflow current through the device when it is powered down.


Main feature

  • Supports 1.65V to 5.5V Vcc operation

  • Input accept voltages up to 5.5V

  • ±24mA output drive at 3.3V

  • CMOS low power consumption

  • ESD protection:

  • HBM Exceeds 2000V

  • CDM Exceeds 1000V

  • Latch-up performance exceeds 100mA

  • pecified from -40°C to +85°C and -40°C to +125°C


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SLP74LVC1G00KMTR SOT-353-5L SA Halogen free Tape & Reel
Block Diagram

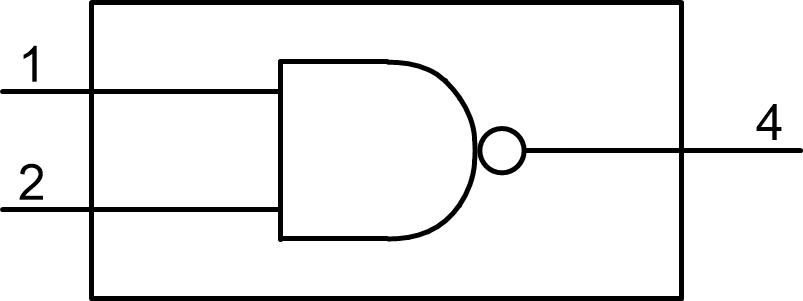

                          Fig.1 Function diagram

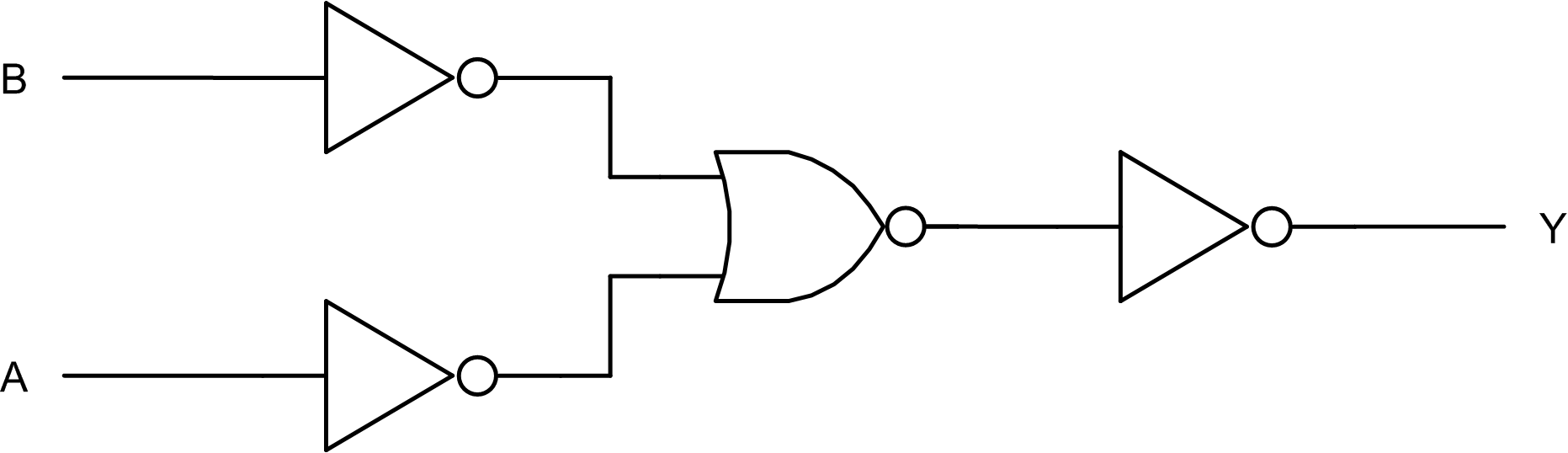

                            Fig.2 Logic diagram

Packages
