    BRUSH-LESS DC-FAN DRIVER WITH ON-CHIP HALL SENSOR

    SA276 mainly designed for electronic commutation of brush-less DC fan. This IC internally includes the Hall Plate, Regulator, Pre-Amplifier, Comparator, and a pair of complementary open-collector Outputs (DO, DOB).

    SA276 internally includes power-reverse protecting diode, the protecting diode only protects chips but not for coils. If necessary, add one external diode to block the reverse current from coils.



    Main feature

    • On-chip hall sensor

    • Wide operating voltage: 3.5V to 20V

    • 300mA (avg) output sink current

    • Build-in power-reverse protecting diode only for reverse power connecting


    Ordering Information
    Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
    SA276 TO-94 276 Pb free Bulk

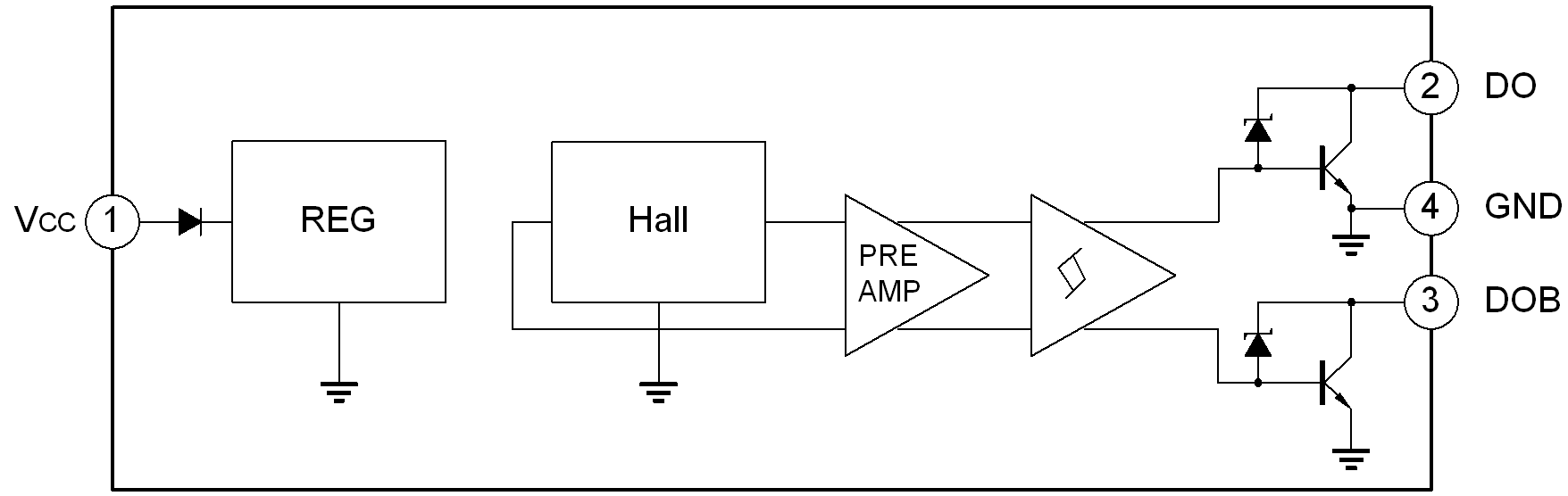

    Block Diagram

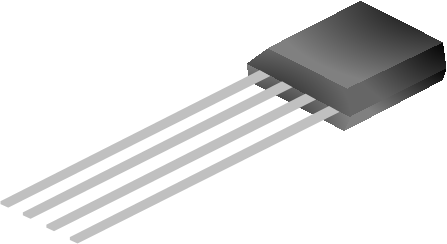

    Packages
