SD30M60AC
600V/30A 3-PHASE FULL-BRIDGE DRIVER (INTELLIGENT POWER MODULE)

    SD30M60AC is a 3-phase brushless DC motor driver with high integration and high reliability for low power inverter driving such as air condition, dishwasher, and industrial sewing machine. It has embedded six low-loss IGBT and three high-speed half-bridge gate drivers with high voltage.

The under voltage, short circuit and over temperature protections integrated make the circuit work safely in a wide range. The current of each phase can be detected separately because there is one independent negative DC terminal for each phase.

SD30M60AC adopts high-insulation design, compact package and carries heat easily, which makes it easy to use especially for compact installation applications.

Main feature

  • Built-in six low-loss 600V/30A IGBT;

  • Built-in high-voltage gate driver;

  • Built-in under voltage, over temperature and over current protections;

  • Built-in bootstrap diode;

  • Compatible with 3.3V, 5V MCU interface, active high;

  • Three independent negative DC terminal for inverter current detection;

  • Alarm signal: for low-side under voltage and short circuit protections;

  • Package in DBC design with low thermal resistance;

  • Insulation level: 2500Vrms/min.

Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks

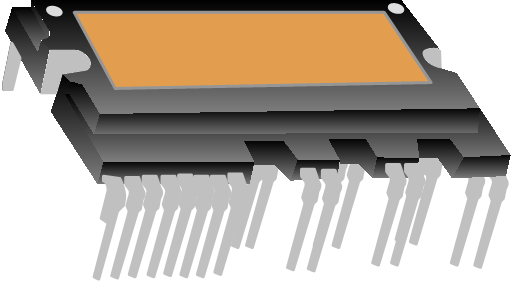

SD30M60AC DIP-27H SD30M60AC Halogen free Tube
Block Diagram


Documents
title Types of Size (KB) date Download the latest English version
SD30M60AC 0 1970-01-01 SD30M60AC Brief Datasheet
